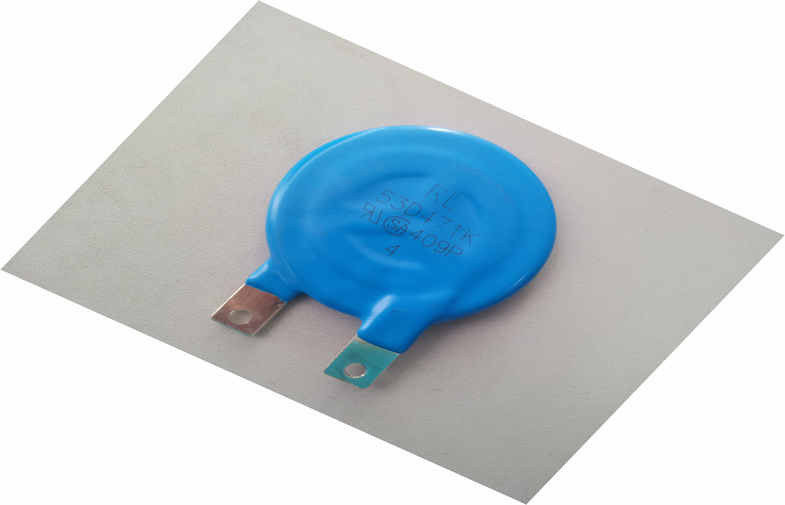

300VAC High Energy VDR Varistor 53D471K For Industrial Power Plants

300VAC High Energy VDR Varistor 53D471K For Industrial Power Plants

รายละเอียดสินค้า:

Place of Origin: Dongguan,Guangdong,China
ชื่อแบรนด์: UCHI
ได้รับการรับรอง: UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL
Model Number: 53D471K

การชำระเงิน:

Minimum Order Quantity: 1000PCS
ราคา: Negotiable
Packaging Details: Bulk
Delivery Time: 5-7 days
Payment Terms: T/T,Paypal,Western Union,Money gram
Supply Ability: 5000,000,000PCS Per Month
ราคาถูกที่สุด ติดต่อ

ข้อมูลรายละเอียด

แสงสูง:

silicon carbide varistor

,

clamping voltage varistor

รายละเอียดสินค้า

300VAC High Energy VDR Varistor 53D471K For Industrial Power Plants





Quick Detail:



• Wide voltage range selection - from 14 VRMS to 680 VRMS.This allows easy selection of the correct component for the specific application.

• High energy absorption capability with respect to size of component.

• Response time of less than 20 ns, clamping the transient the instant it occurs.

• Low stand-by power - virtually no current is used in the stand-by condition.

• Low capacitance values, making the varistors suitable for the protection of digital switching circuitry.

• High body insulation - an ochre coating provides protection up to 2500 V, preventing short circuits to

adjacent components or tracks.

• Available on tape with accurately defined dimensional tolerances, making the varistors ideal for automatic

insertion.

• Approved to UL 1449 edition 3 (file number: E332800) and manufactured using UL approved flame retardant materials.

• Completely non flammable, in accordance with IEC, even under severe loading conditions.

• Non porous lacquer making the varistors safe for use in humid or toxic environments. The lacquer is also resistant to cleaning solvents in accordance with IEC 60068-2-45.





Description:



Varistors provide reliable and economical protection against high voltage transients and surges which may be produced,for example, by lightning, switching or electrical noise on AC or DC power lines. They have the advantage over transient suppressor diodes in as much as they can absorb much higher transient energies and can suppress positive and negative transients.When a transient occurs, the varistor resistance changes from a very high stand-by value to a very low conducting value. The transient is thus absorbed and clamped to a safe level, protecting sensitive circuit components.Varistors are manufactured from a non-homogeneous material, giving a rectifying action at the contact points of two particles. Many series and parallel connections determine the voltage rating and the current capability of the varistor





Applications:



Varistors may be used in many applications, including:

• Computers

• Timers

• Amplifiers

• Oscilloscopes

• Medical analysis equipment

• Street lighting

• Tuners

• Televisions

• Controllers

• Industrial power plants

• Telecommunications

• Automotive

• Gas and petrol appliances

• Electronic home appliances

• Relays

• Broadcasting

• Traffic facilities

• Electromagnetic valves

• Railway distribution/vehicles

• Agriculture

• Power supplies

• Line ground (earth protection)

• Microwave ovens

• Toys, etc.





Specifications:



Part Number

Vac(V)

Vdc(V)

V1mA(V)

Ip(A)

Vc(V)

I(A)

(J)

@1KHz(pF)

53D330K

20

26

33(29.5-36.5)

100

65

20000

85

81000

53D390K

25

31

39(35-43)

100

77

20000

105

60000

53D470K

30

38

47(42-52)

100

93

20000

130

52000

53D560K

35

45

56(50-62)

100

110

20000

150

46000

53D680K

40

56

68(61-75)

100

135

20000

190

41000

53D820K

50

65

82(74-90)

500

135

70000

225

35000

53D101K

60

85

100(90-110)

500

165

70000

280

28500

53D121K

75

100

120(108-132)

500

200

70000

340

23500

53D151K

95

125

150(135-165)

500

250

70000

430

19000

53D181K

115

150

180(162-198)

500

300

70000

500

17000

53D201K

130

170

200(180-220)

500

340

70000

550

15000

53D221K

140

180

220(198-242)

500

360

70000

600

13750

53D241K

150

200

240(216-264)

500

395

70000

650

12500

53D271K

175

225

270(243-297)

500

455

70000

700

11000

53D301K

190

250

300(270-330)

500

500

70000

765

10000

53D331K

210

275

330(297-363)

500

550

70000

825

9000

53D361K

230

300

360(324-396)

500

595

70000

850

8500

53D391K

250

320

390(351-429)

500

650

70000

885

7500

53D431K

275

350

430(387-473)

500

710

70000

990

7000

53D471K

300

385

470(423-517)

500

775

70000

1080

6500

53D511K

320

415

510(459-561)

500

845

70000

1150

6000

53D561K

350

460

560(504-616)

500

925

70000

1200

5500

53D621K

385

505

620(558-682)

500

1025

70000

1300

5000

53D681K

420

560

680(621-748)

500

1120

70000

1350

4500

53D751K

460

615

750(675-825)

500

1240

70000

1400

4000

53D781K

485

640

780(702-858)

500

1290

70000

1450

3900

53D821K

510

670

820(738-902)

500

1355

70000

1600

3700

53D911K

550

745

910(819-1001)

500

1500

70000

1700

3300

53D951K

575

765

950(855-1045)

500

1570

70000

1800

3200

53D102K

625

825

1000(900-1100)

500

1650

70000

1890

3000

53D112K

680

895

1100(990-1210)

500

1815

70000

2050

2700

53D122K

750

990

1200(1080-1320)

500

1980

70000

2160

2500

53D142K

880

1140

1400(1260-1540)

500

2310

70000

2300

2150

53D162K

1000

1280

1600(1440-1760)

500

2640

70000

2500

1900






Competitive Advantage:,



  1. Factory supply directly
  2. Completed certificates such as UL,VDE,SGS,etc and high quality available
  3.  Quick delivery
  4. Best after-sales services
  5. OEM & ODM available
