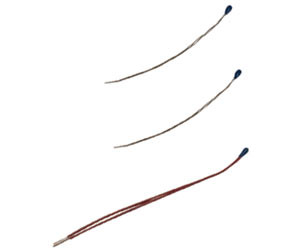

• Epoxy-coated Interchangeable Type NTC Thermistor Solid State Temperature Sensor
Epoxy-coated Interchangeable Type NTC Thermistor Solid State Temperature Sensor

Epoxy-coated Interchangeable Type NTC Thermistor Solid State Temperature Sensor

รายละเอียดสินค้า:

สถานที่กำเนิด: Dongguan,Guangdong,China
ชื่อแบรนด์: UCHI
ได้รับการรับรอง: ROHS,SGS
หมายเลขรุ่น: CWF103F-3950F

การชำระเงิน:

จำนวนสั่งซื้อขั้นต่ำ: 1000PCS
ราคา: Negotiable
รายละเอียดการบรรจุ: Bulk 500PCS/BAG
เวลาการส่งมอบ: 7 working days
เงื่อนไขการชำระเงิน: T/T,Paypal,Western Union,Money gram
สามารถในการผลิต: 8000,000,000PCS Per Month
ราคาถูกที่สุด ติดต่อ

ข้อมูลรายละเอียด

แสงสูง:

power ntc thermistor

,

ntc thermistor assembly

รายละเอียดสินค้า



Epoxy-coated Interchangeable Type NTC Thermistor Solid State Temperature Sensor





Quick Detail:



Precision, solid state temperature sensor

Interchangeability down to ±0.18°F (±0.1°C)

Suitable for use over a range of -112°F to 302°F (–80°C to 150°C)

High sensitivity, greater than –4%/°C at 77°F (25°C)

Suitable for temperature measurement, control and compensation

High reliability and stability over an interchangeable range

Most popular Resistance (R) vs Temperature (T) curves are available

Resin-coated for good mechanical strength and resistance to solvents

Rugged construction



For DC95: .012 in (0.3mm) diameter bare tinned-copper lead wires

For EC95: .008 in (0.2mm) diameter bare tinned-alloy lead wires

For TK95: .010 in (.25mm) diameter PTFE insulated lead wires

Description:



Epoxy-coated, NTC interchangeable thermistor chips with bare tinned-copper lead wires.





Applications:



  • Extremely rugged sensor consisting of a hex head machine screw that can be fastened into drilled and tapped holes.





Specifications:

NTC Interchangeable Thermistor Chip

Epoxy-coated, NTC interchangeable thermistor chips with bare tinned-copper lead wires.

Options

Consult Factory for Availability of Options

Other resistance values in the range of 1000 Ω to 100 kΩ
Other tolerances or ranges
Alternative lead wires or lengths
Non standard R vs T curves
Controlled dimensions
Special sensor assemblies or enclosures



Thermal and Electrical Properties

Dissipation Constant

Still air: 1 mW/°C
Stirred oil: 8 mW/°C

Thermal Time Constant

Still air: 10 seconds
Stirred oil: 1 second

Maximum Power at 77°F (25°C)

75 mW





De-rated from 100% at 77°F (25°C) to 0% at 212°F (100°C)



dc-95-1



Type EC95 Specifications
NTC Interchangeable Thermistor Chip



Epoxy-coated, NTC interchangeable thermistor chips with bare tinned 180 alloy lead-wires.



Options

Consult Factory for Availability of Options

Other resistance values in the range of 1000 Ω to 100 kΩ
Other tolerances or ranges
Alternative lead wires or lengths
Non standard R vs T curves
Controlled dimensions
Special sensor assemblies or enclosures

Thermal and Electrical Properties

Dissipation Constant

Still air: 1 mW/°C
Stirred oil: 8 mW/°C

Thermal Time Constant

Still air: 10 seconds
Stirred oil: 1 second

Maximum Power at 77°F (25°C)

75 mW



De-rated from 100% at 77°F (25°C) to 0% at 212°F (100°C)



ec-95-1

Type TK95 Specifications
NTC Interchangeable Thermistor Chip

Epoxy-coated, NTC interchangeable thermistor chips with PTFE insulated nickel lead-wires.

Options

Consult Factory for Availability of Options

Other resistance values in the range of 1000 Ω to 100 kΩ
Other tolerances or ranges
Alternative lead wires or lengths
Non standard R vs T curves
Controlled dimensions
Special sensor assemblies or enclosures

Thermal and Electrical Properties

Dissipation Constant

Still air: 1 mW/°C
Stirred oil: 8 mW/°C

Thermal Time Constant

Still air: 10 seconds
Stirred oil: 1 second

Maximum Power at 77°F (25°C)

75 mW





De-rated from 100% at 77°F (25°C) to 0% at 212°F (100°C)



tk-95-1
