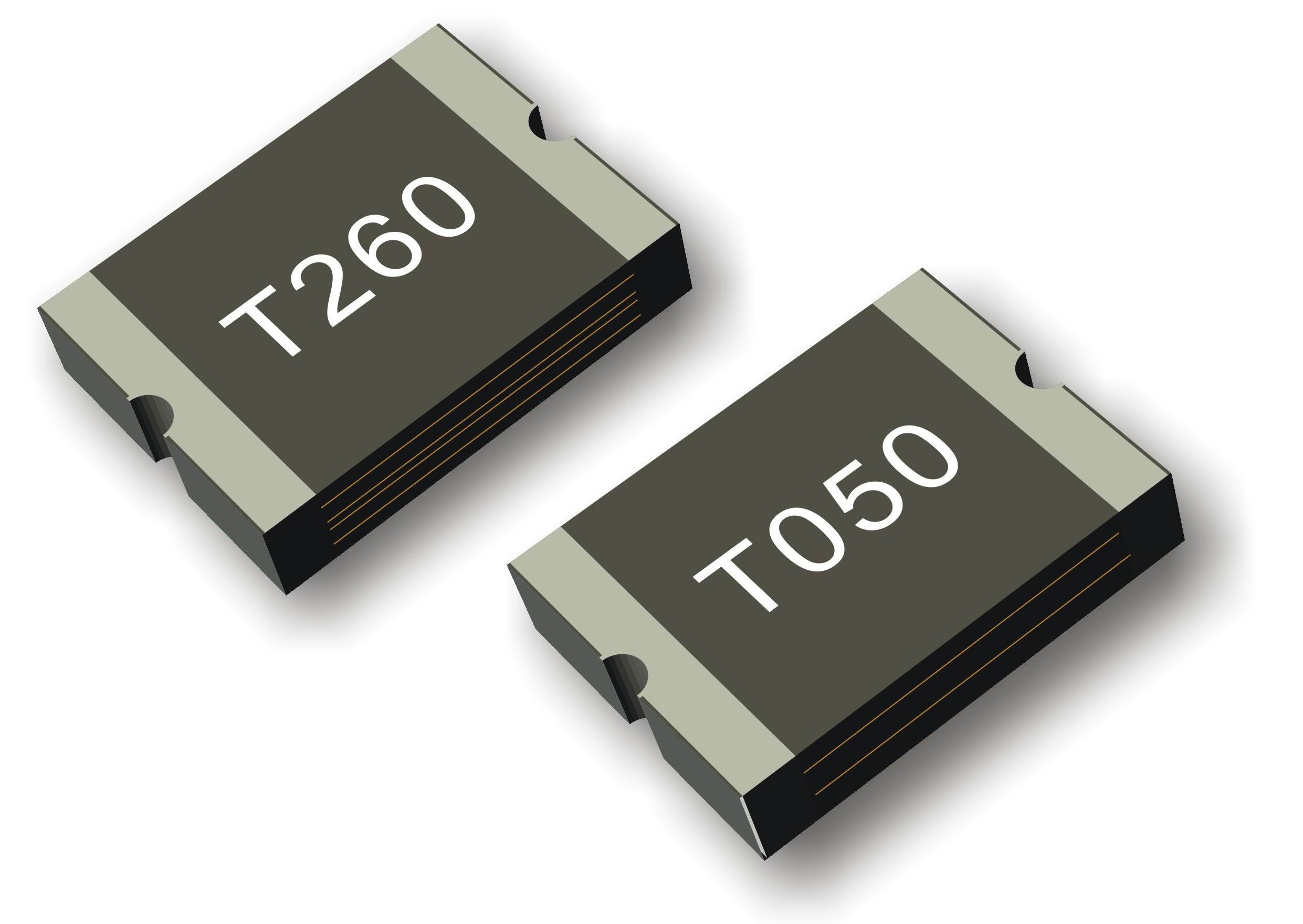

Surface Mount 1812 PPTC Resettable Fuse , SMD Resettable PPTC

Surface Mount 1812 PPTC Resettable Fuse , SMD Resettable PPTC

ภาพใหญ่ :  Surface Mount 1812 PPTC Resettable Fuse , SMD Resettable PPTC

รายละเอียดสินค้า:

Place of Origin: Dongguan,Guangdong,China
ชื่อแบรนด์: UCHI
ได้รับการรับรอง: UL.VDE.SGS.
Model Number: MSMD260

การชำระเงิน:

Minimum Order Quantity: 3000PCS
ราคา: Negotiable
Packaging Details: Reel 1500PCS/Reel
Delivery Time: 3~5 working days
Payment Terms: T/T,Paypal,Western Union,Money gram
Supply Ability: 8000,000,000PCS Per Month
รายละเอียดสินค้า

Surface Mount 1812 PPTC Resettable Fuse , SMD Resettable PPTC



Quick Detail:



Surface Mount Devices
Standard 4532mm(1812mils) footprint
Surface mount packaging for automated assembly
Compatible with Pb and Pb-free solder reflow profiles.
Agency recognition: UL approved




Description:



The MSMD1812 Series PTC provides surface mount overcurrent protection for applications where resettable protection is desired.





Applications:



◆ Overcurrent and overtemperature protection of automotive electronics

◆ PC motherboards, Hard disk driver, and PC peripherals

◆ POS Equipment

◆ USB port protection

◆ HDMI source protection





Specifications:



Electrical Characteristics

P/N















IH, (A)

IT,(A)

Vmax,(v)

Imax,(A)

(A)

(Sec.)

Pd typ(W)

Rmin

R1max

MSMD010

0.10

0.30

60

10

0.5

1.50

0.8

0.700

15.000

MSMD014

0.14

0.34

60

10

1.5

0.15

0.8

0.400

6.500

MSMD020

0.20

0.40

30

10

8.0

0.02

0.8

0.750

5.00

MSMD020/60

0.20

0.40

60

10

1.5

0.15

0.8

0.400

6.000

MSMD030

0.30

0.60

30

10

8.0

0.10

0.8

0.300

3.000

MSMD035

0.35

0.70

16

10

8.0

0.10

0.8

0.200

1.800

MSMD050

0.50

1.00

16

30

8.0

0.15

0.8

0.150

1.000

MSMD075

0.75

1.50

16

40

8.0

0.20

0.8

0.110

0.450

MSMD075/24

0.75

1.50

24

40

8.0

0.20

0.8

0.110

0.450

MSMD075/33

0.75

1.50

33

40

8.0

0.20

0.8

0.110

0.450

MSMD110

1.10

2.20

6

100

8.0

0.30

0.8

0.040

0.225

MSMD110/16

1.10

2.20

16

100

8.0

0.50

0.8

0.040

0.225

MSMD110/24

1.10

2.20

24

100

8.0

0.50

0.8

0.055

0.180

MSMD125

1.25

2.50

6

40

8.0

0.40

0.8

0.035

0.140

MSMD150

1.50

3.00

6

100

8.0

0.50

0.8

0.030

0.120

MSMD150/12

1.50

3.00

12

100

8.0

0.50

1.0

0.030

0.120

MSMD150/24

1.50

3.00

24

20

8.0

1.50

1.0

0.030

0.140

MSMD160

1.60

3.20

8

100

8.0

0.50

0.8

0.025

0.120

MSMD160/12

1.60

3.20

12

100

8.0

1.00

1.0

0.025

0.120

MSMD160/16

1.60

3.20

16

100

8.0

1.00

1.0

0.025

0.120

MSMD200

2.00

4.00

16

100

8.0

3.00

0.8

0.020

0.080

MSMD250/16

2.50

5.00

16

100

8.0

5.00

1.2

0.015

0.100

MSMD260

2.60

5.20

16

100

8.0

5.00

0.8

0.015

0.080

MSMD300

3.00

6.00

12

100

8.0

5.00

0.8

0.012

0.060



IH=Hold current: maximum current at which the device will not trip at 25℃ still air.

IT=Trip current: minimum current at which the device will always trip at 25℃ still air.

Vmax=Maximum voltage device can withstand without damage at rated current.

Imax=Maximum fault current device can withstand without damage at rated voltage.

Ttrip=Maximum time to trip(s) at assigned current.

Pdtyp=Typical power dissipation: typical amount of power dissipated by the device when in state air environment.

Rmin=Minimum device resistance at 25℃ prior to tripping.

Rmax=Maximum device resistance at 25℃ prior to tripping.





Product Dimensions & Marking (Unit: mm) :



P/N

Marking



A

B

C

D

Min.

Max.

Min.

Max.

Min.

Max.

Min.

MSMD010

 T010

4.37

4.73

3.07

3.41

0.80

1.20

0.30

MSMD014

 T014

4.37

4.73

3.07

3.41

0.80

1.20

0.30

MSMD020

T020

4.37

4.73

3.07

3.41

0.80

1.20

0.30

MSMD020/60

T020

4.37

4.73

3.07

3.41

0.80

1.20

0.30

MSMD030

T030

4.37

4.73

3.07

3.41

0.80

1.20

0.30

MSMD035

T035

4.37

4.73

3.07

3.41

0.60

1.00

0.30

MSMD050

T050

4.37

4.73

3.07

3.41

0.60

1.00

0.30

MSMD075

T075

4.37

4.73

3.07

3.41

0.60

1.00

0.30

MSMD075/24

T075

4.37

4.73

3.07

3.41

0.60

1.00

0.30

MSMD075/33

T075

4.37

4.73

3.07

3.41

0.60

1.00

0.30

MSMD110

T110

4.37

4.73

3.07

3.41

0.60

1.00

0.30

MSMD110/16

T110

4.37

4.73

3.07

3.41

0.60

1.00

0.30

MSMD110/24

T110

4.37

4.73

3.07

3.41

0.90

1.30

0.30

MSMD125

T125

4.37

4.73

3.07

3.41

0.60

1.00

0.30

MSMD150

T150

4.37

4.73

3.07

3.41

0.45

0.85

0.30

MSMD150/12

T150

4.37

4.73

3.07

3.41

0.45

0.85

0.30

MSMD150/24

T150

4.37

4.73

3.07

3.41

0.90

1.30

0.30

MSMD160

T160

4.37

4.73

3.07

3.41

0.45

0.85

0.30

MSMD160/12

T160

4.37

4.73

3.07

3.41

0.45

0.85

0.30

MSMD160/16

T160

4.37

4.73

3.07

3.41

0.45

0.85

0.30

MSMD200

T200

4.37

4.73

3.07

3.41

0.70

1.10

0.30

MSMD250/16

T250

4.37

4.73

3.07

3.41

0.70

1.10

0.30

MSMD260

T260

4.37

4.73

3.07

3.41

0.70

1.10

0.30

MSMD300

T300

4.37

4.73

3.07

3.41

0.70

1.10

0.30



Thermal Derating Chart – I hold (Amps)

P/N

Ambient Operating Temperature

-40℃

-20℃

0℃

25℃

40℃

50℃

60℃

70℃

85℃

MSMD010

0.16

0.14

0.12

0.10

0.08

0.07

0.06

0.05

0.03

MSMD014

0.23

0.19

0.17

0.14

0.12

0.10

0.09

0.08

0.06

MSMD020

0.29

0.26

0.23

0.20

0.17

0.15

0.14

0.12

0.10

MSMD020/60

0.29

0.26

0.23

0.20

0.17

0.15

0.14

0.12

0.10

MSMD030

0.44

0.39

0.35

0.30

0.26

0.23

0.21

0.18

0.15

MSMD035

0.51

0.46

0.41

0.35

0.30

0.27

0.25

0.21

0.18

MSMD050

0.77

0.68

0.59

0.50

0.44

0.40

0.37

0.33

0.29

MSMD075

1.15

1.01

0.88

0.75

0.65

0.60

0.55

0.49

0.43

MSMD075/24

1.15

1.01

0.88

0.75

0.65

0.60

0.55

0.49

0.43

MSMD075/33

1.15

1.01

0.88

0.75

0.65

0.60

0.55

0.49

0.43

MSMD110

1.59

1.43

1.26

1.10

0.95

0.87

0.80

0.71

0.60

MSMD110/16

1.59

1.43

1.26

1.10

0.95

0.87

0.80

0.71

0.60

MSMD110/24

2.00

1.70

1.40

1.10

0.95

0.88

0.80

0.73

0.61

MSMD125

1.80

1.63

1.43

1.25

1.08

0.99

0.91

0.81

0.68

MSMD150

2.17

1.95

1.72

1.50

1.30

1.18

1.09

0.97

0.82

MSMD150/12

2.17

1.95

1.72

1.50

1.30

1.18

1.09

0.97

0.82

MSMD150/24

2.17

1.95

1.72

1.50

1.30

1.18

1.09

0.97

0.82

MSMD160

2.30

2.20

1.90

1.60

1.45

1.30

1.15

1.03

0.91

MSMD160/12

2.30

2.20

1.90

1.60

1.45

1.30

1.15

1.03

0.91

MSMD160/16

2.30

2.20

1.90

1.60

1.45

1.30

1.15

1.03

0.91

MSMD200

3.08

2.71

2.35

2.00

1.80

1.60

1.50

1.40

1.25

MSMD250/16

3.85

3.45

3.00

2.50

2.05

1.85

1.75

1.30

1.10

MSMD260

4.00

3.52

3.06

2.60

2.34

2.08

1.95

1.39

1.04

MSMD300

4.40

3.90

3.50

3.00

2.60

2.30

2.10

1.80

1.50




Typical time to trip at 25℃






◆ The Time to Trip curves represent typical performance of a device in a simulated application environment. Actual performance in specific customer applications may differ from these values due to the influence of other variables.

Agency Approvals:

        Agency Approvals:UL,CSA,TUV

        Regulation/Standard: RoHS RoHS 2.0(2011/65/CE)



 Package information:

 Model                                                                                                                                  Q’ty/Reel

 MSMD010 ~ MSMD030, MSMD110/24, MSMD150/24, MSMD200~MSMD300                     1500 pcs

 MSMD050 ~ MSMD160                                                                                                        2000 pcs

 Note: Reel packaging per EIA-481-1 standard





Competitive Advantage:



  1. Factory supply directly
  2. Completed certificates such as UL,VDE,SGS,etc and high quality available
  3.  Quick delivery
  4. Best after-sales services
  5. OEM & ODM available
