Waterproof to IP68
Withstands freeze/thaw cycling
Available using any device in the Thermometrics
standard NK and DC95 ranges
Range of wire lengths 11.81 in to 196.85 in (300 mm to 5000 mm) (dimension WL on page 2)
Suitable for refrigeration applications, including evaporators

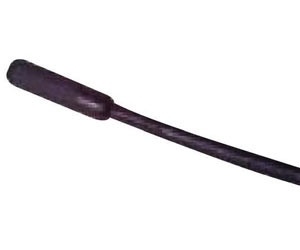

Chip thermistor housed in a tip, which is molded onto flexible circular cable. Tip and outer cable insulation material is thermoplastic elastomer. Tinned copper conductors have individual polyolefin insulation.
Extremely rugged sensor consisting of a hex head machine screw that can be fastened into drilled and tapped holes.
Other resistance – temperature characteristics
Other wire lengths
Temperature range: -40°F to 221°F (-40°C to 105°C)
Insulation resistance: >100 MΩ at 500 VDC
Wire conductors: 7 X 0.23 mm diameter (0.30 mm2)
Resistance - temperature characteristics: Refer to NK and DC95 data sheets
