Epoxy Coated NTC Thermistor , Epoxy Resin Package Solid State Temperature Sensor
รายละเอียดสินค้า:
สถานที่กำเนิด: | ตงกวน กวางตุ้ง ประเทศจีน |
ชื่อแบรนด์: | UCHI |
ได้รับการรับรอง: | ROHS,SGS |
หมายเลขรุ่น: | CWF103F-3950F |
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: | 1000 ชิ้น |
---|---|
ราคา: | Negotiable |
รายละเอียดการบรรจุ: | จำนวนมาก 500 ชิ้น/ถุง |
เวลาการส่งมอบ: | 7 วันทำการ |
เงื่อนไขการชำระเงิน: | T/T,Paypal,Western Union,Money gram |
สามารถในการผลิต: | 8000,000,000PCS ต่อเดือน |
ข้อมูลรายละเอียด |
|||
คำอธิบาย: | การวัดอุณหภูมิ | ประเภทการติดตั้ง:: | ปรับแต่ง |
---|---|---|---|
ความแม่นยำ: | ± 1% | Place of Origin:: | Guangdong, China |
พิมพ์: | กทช เทอร์มิสเตอร์ | บรรจุภัณฑ์ / กล่อง:: | แพ็คเกจอีพ็อกซี่ |
แสงสูง: | Epoxy Coated NTC Thermistor,Epoxy Resin Package NTC Thermistor,ROHS Solid State Temperature Sensor |
รายละเอียดสินค้า

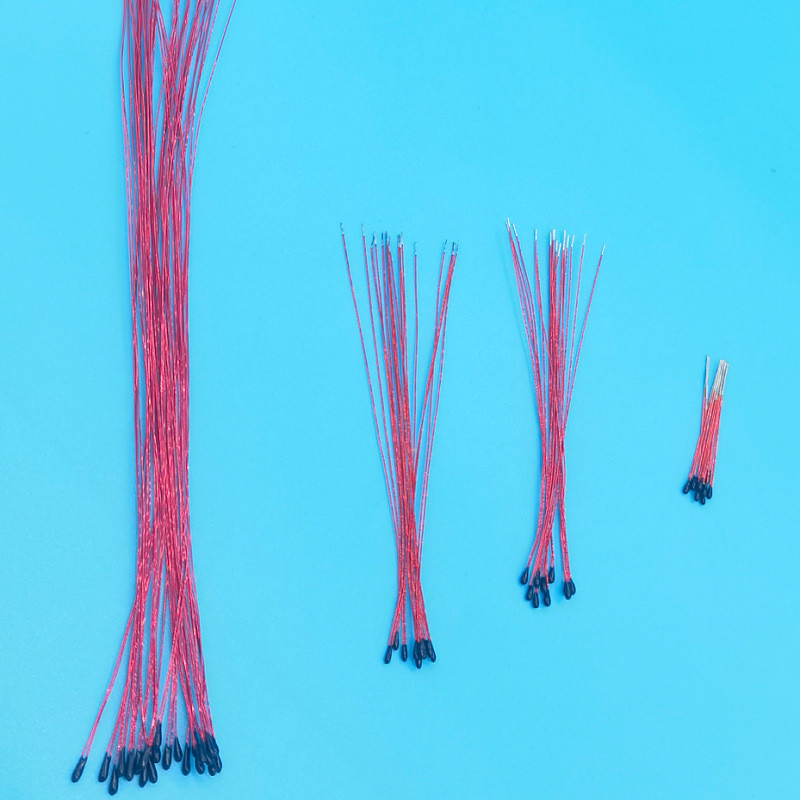

Epoxy-coated Interchangeable Type NTC Thermistor Solid State Temperature Sensor
Quick Detail:
Precision, solid state temperature sensor
Interchangeability down to ±0.18°F (±0.1°C)
Suitable for use over a range of -112°F to 302°F (–80°C to 150°C)
High sensitivity, greater than –4%/°C at 77°F (25°C)
Suitable for temperature measurement, control and compensation
High reliability and stability over an interchangeable range
Most popular Resistance (R) vs Temperature (T) curves are available
Resin-coated for good mechanical strength and resistance to solvents
Rugged construction
For DC95: .012 in (0.3mm) diameter bare tinned-copper lead wires
For EC95: .008 in (0.2mm) diameter bare tinned-alloy lead wires
For TK95: .010 in (.25mm) diameter PTFE insulated lead wires
Description:
Epoxy-coated, NTC interchangeable thermistor chips with bare tinned-copper lead wires.
Applications:
-
Extremely rugged sensor consisting of a hex head machine screw that can be fastened into drilled and tapped holes.
Specifications:
NTC Interchangeable Thermistor Chip
Epoxy-coated, NTC interchangeable thermistor chips with bare tinned-copper lead wires.
Options
Consult Factory for Availability of Options |
Other resistance values in the range of 1000 Ω to 100 kΩ |
---|
Thermal and Electrical Properties
Dissipation Constant |
Still air: 1 mW/°C |
---|---|
Thermal Time Constant |
Still air: 10 seconds |
Maximum Power at 77°F (25°C) |
75 mW |
De-rated from 100% at 77°F (25°C) to 0% at 212°F (100°C)
Type EC95 Specifications
NTC Interchangeable Thermistor Chip
Epoxy-coated, NTC interchangeable thermistor chips with bare tinned 180 alloy lead-wires.
Options
Consult Factory for Availability of Options |
Other resistance values in the range of 1000 Ω to 100 kΩ |
---|
Thermal and Electrical Properties
Dissipation Constant |
Still air: 1 mW/°C |
---|---|
Thermal Time Constant |
Still air: 10 seconds |
Maximum Power at 77°F (25°C) |
75 mW |
De-rated from 100% at 77°F (25°C) to 0% at 212°F (100°C)
Type TK95 Specifications
NTC Interchangeable Thermistor Chip
Epoxy-coated, NTC interchangeable thermistor chips with PTFE insulated nickel lead-wires.
Options
Consult Factory for Availability of Options |
Other resistance values in the range of 1000 Ω to 100 kΩ |
---|
Thermal and Electrical Properties
Dissipation Constant |
Still air: 1 mW/°C |
---|---|
Thermal Time Constant |
Still air: 10 seconds |
Maximum Power at 77°F (25°C) |
75 mW |
De-rated from 100% at 77°F (25°C) to 0% at 212°F (100°C)
