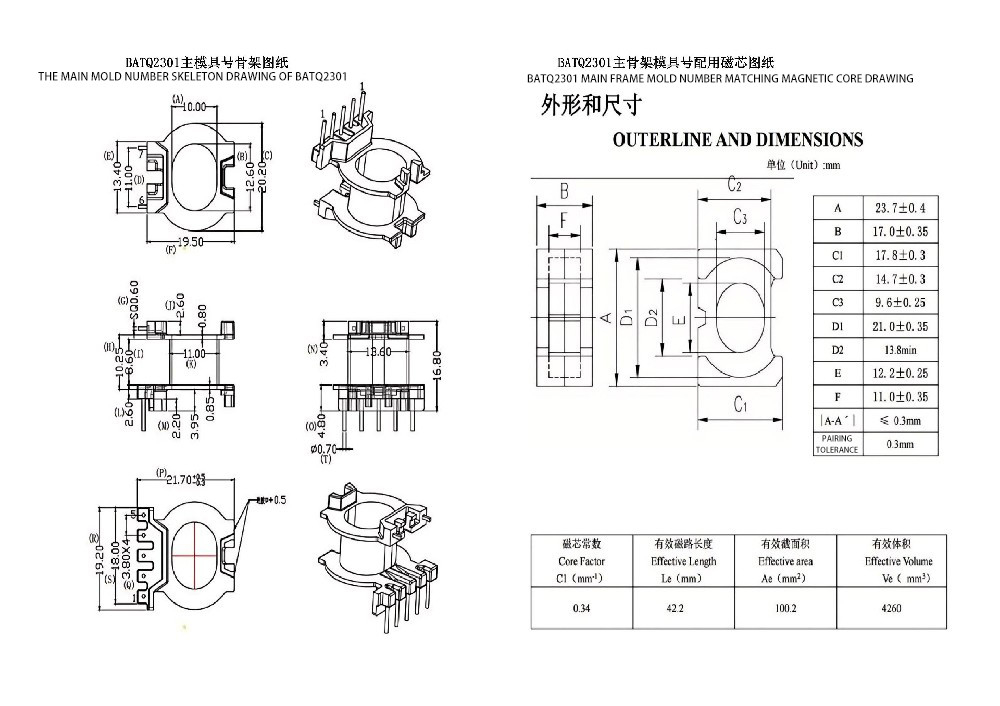

BATQ2301 ATQ23.7 Vertical Single-Sided 5+2 Center Pins Power Distribution Transformer High Frequency

BATQ2301(ATQ23.7 Vertical Single-Sided 5+2 Center Pins) Power Distribution Transformer High Frequency Power Transformer

    The power transformer is the "heart" of the power system. Its characteristics are reflected in the voltage transformation capability based on electromagnetic induction, efficient and reliable energy transmission characteristics, as well as diverse structural designs. The advantages are concentrated in aspects such as energy conservation, flexibility, reliability and environmental adaptability. With the development of technology, future power transformers will further evolve towards low loss, intelligence (such as intelligent monitoring and fault diagnosis), and compactance, in order to better serve the new power system and the green energy transition.
     Power transformers are highly efficient and energy-saving, reducing transmission losses.
By increasing the voltage to reduce the current in the transmission line, the Joule loss (P=I ² R) caused by the line resistance is decreased. For instance, when the voltage is raised from 10kV to 110kV, the transmission current can be reduced to 1/11 of the original, and the loss can be reduced to 1/121 of the original.
Energy-saving transformers (such as amorphous alloy core transformers) further reduce no-load losses and are suitable for long-term operation scenarios in power grids.

DETAILED INTRODUCTION


CASE DIAGRAM
