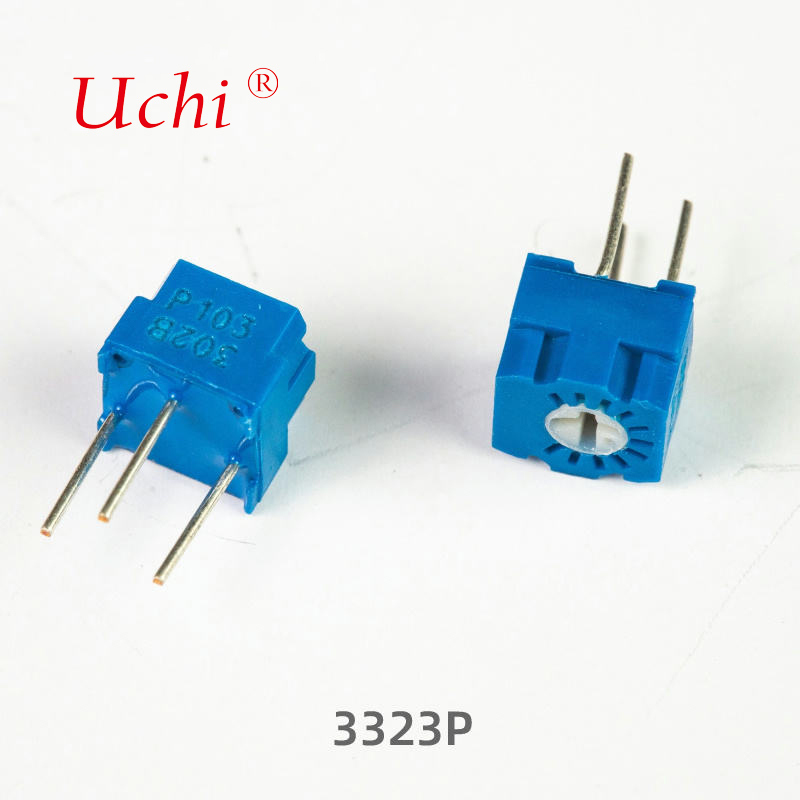

3323P Single-turn Metal Glass Glaze Fine-tuning Potentiometer 5k Precision Adjustable Resistor
รายละเอียดสินค้า:
| สถานที่กำเนิด: | Dongguan， Guangdong ประเทศจีน |
| ชื่อแบรนด์: | Uchi |
| ได้รับการรับรอง: | SMC |
| หมายเลขรุ่น: | 3323P |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | 100 ชิ้น |
|---|---|
| ราคา: | โปร่ง |
| เงื่อนไขการชำระเงิน: | T/T, เพย์พาล, เวสเทิร์นยูเนี่ยน, MoneyGram |
| สามารถในการผลิต: | 50000000PCS ต่อเดือน |
|
ข้อมูลรายละเอียด |
|||
| ช่วงความต้านทานที่ระบุ: | 5k | กำลังไฟพิกัด: | 0.5W (สูงสุด 300V) |
|---|---|---|---|
| การเดินทางด้วยไฟฟ้าที่มีประสิทธิภาพ: | ≥200° | การเดินทางเชิงกลทั้งหมด: | 270°±10° |
| แรงบิดสต็อปเปอร์: | ≥50mN.m | เริ่มแรงบิด: | ≤20mN.m |
| ทีซีอาร์: | ±250*10-6/°ซ | ช่วงอุณหภูมิ: | -55°C~+125°C |
| ความอดทน: | ± 10% | ขนาด / มิติ: | 6.8*6.8มม |
| เน้น: | single-turn metal potentiometer,precision adjustable resistor 5k,glass glaze fine-tuning potentiometer |
||
รายละเอียดสินค้า
3323P Single-turn Metal Glass Glaze Fine-tuning Potentiometer 5k Precision Adjustable Resistor
The 3323P is a precision adjustable potentiometer featuring metal glass glaze technology. Designed for fine-tuning applications, this blue-colored component is rotated with a screwdriver and features three legs. Its robust construction makes it ideal for circuit protection devices and industrial controllers.
Key Features
- Three-leg design for screwdriver adjustment
- Distinctive blue color for easy identification
- Dual adjustment positions (high/low resistance) for circuit control
- Metal glass glaze construction for superior heat, corrosion, and impact resistance
- High-precision fine-tuning capability
- Excellent accuracy and stability for reliable circuit operation
- Wide compatibility with electronic equipment
Specification Parameters
| Electrical Characteristics | |
|---|---|
| Range of nominal resistance | 10Ω~5MΩ |
| Resistance tolerance | ±10% |
| Terminal resistance | ≤±1%R or 2Ω |
| Contact resistance variation (CRV) | ≤±1%R or 3Ω |
| Insulation resistance | ≥ 1GΩ (100V AC) |
| Withstand voltage | 500V (DC or AC peak value) |
| Effective electrical travel | ≥200° |
| Environment Characteristics | |
|---|---|
| Rated power | 0.5W (300V max) |
| Temperature range | -55°C~+125°C |
| TCR | ±250×10-6/°C |
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) | ΔR≤±2%R, ΔUab/Uac≤±2%R |
| Physical Characteristics | |
|---|---|
| Total mechanical travel | 270°±10° |
| Starting torque | ≤20mN.m |
| Stoper torque | ≥50mN.m |
| Standard package | 50 pcs /tube |
Product Size
Application Areas
This potentiometer is widely used in instrumentation, electrical appliances, audio equipment, communications, medical devices, security products, industrial control systems, televisions, telephones, office automation equipment, and information/communication devices.
